North Slope Borough, Alaska · 70.25°N · 148.34°W · Market: Telecom

Telecom towers and wind-induced vibrations

Tower natural frequency
~1.5 Hz1
Lock-in wind window
13-21 mph1
Peak recorded wind
109 mph2
Logged tower failures, one study
140+3

What is wind-induced vibration, and where does the damage land?

Towers carry wind loads in several ways, often at the same time: gust buffeting, static wind load, and vortex shedding.

Vortex shedding is the one that fatigues the steel out of sight. As air peels off each side of the shaft it briefly acts like a wing, generating a sideways lift force; the tower flexes, its own stiffness pulls it back, and the cycle repeats.

When the shedding rate lines up with the tower's natural rhythm, the motion synchronizes and the sway grows. Each swing bends the steel a little, and that bending fatigue concentrates where stress piles up: at the base, and at the welds and bolted joints up the mast.

wind (E)Antenna mount140 yrs to failure (P10)Upper mast section70 yrs to failure (P10)Mid-mast splice28 yrs to failure (P10)Lower flange splice9 yrs to failure (P10)Base plate weld5 yrs to failure (P10)
under 25% life25-60%over 60%: focus area

At what wind speed does my structure lock in?

Drag the wind speed to see predicted amplitude.

1st mode lock-in2nd mode lock-in010203040vibration amplitude (mm)010203040506070perpendicular wind speed (mph)fatigue damage threshold (10 mm)
Perpendicular wind
17 mph
Lock-in: resonance risk
Shedding has synchronized with a structural mode. Amplitude swells into the resonance hump, past the damage threshold.
Predicted amplitude is above the 10 mm fatigue damage line here.
Predicted amplitude
9.1-17.7 mm
Shedding frequency
1.52 Hz
1st / 2nd mode
1.5 / 4.5 Hz
Lock-in winds
17, 50 mph

How much fatigue life has each location already spent?

Measured cycles are sorted by amplitude and summed against an S-N curve to give each location's spent fatigue life. The ranking drives the real decision: which sections need a damper, and how many to buy.

Fatigue spent, by location
Base plate weld
147M cycles · peak 32 mm · 5 yrs to expected failure (P10)
1010¹10²10³1010101010cycles counted (log scale)0.512481216242832amplitude bucket (mm)

Cycles are binned by amplitude, converted to a stress range, and summed against an S-N curve by Miner's rule. The red high-amplitude buckets, though rare, carry most of the damage. Illustrative synthetic data, not a measurement of any real structure.

How long it lasts depends on the material and the connection detail4
2050100200500stress range (MPa)10³101010101010cycles to failureendurance limit (steel)Plain S355BoltedWeldedAluminium
Plain steel (S355 base metal)Bolted splice (Cat 112)Welded joint (Cat 90)AluminiumBelow the endurance limit, steel life effectively runs to infinity, so a well-designed detail builds up no fatigue at all. Illustrative.

Where do you put the sensors?

Three sensors, each answering a different question. Near the top for the cleanest motion signal, mid-mast to catch the higher mode, and at the base where stress and fatigue are highest. Placement follows the tower's mode shapes.

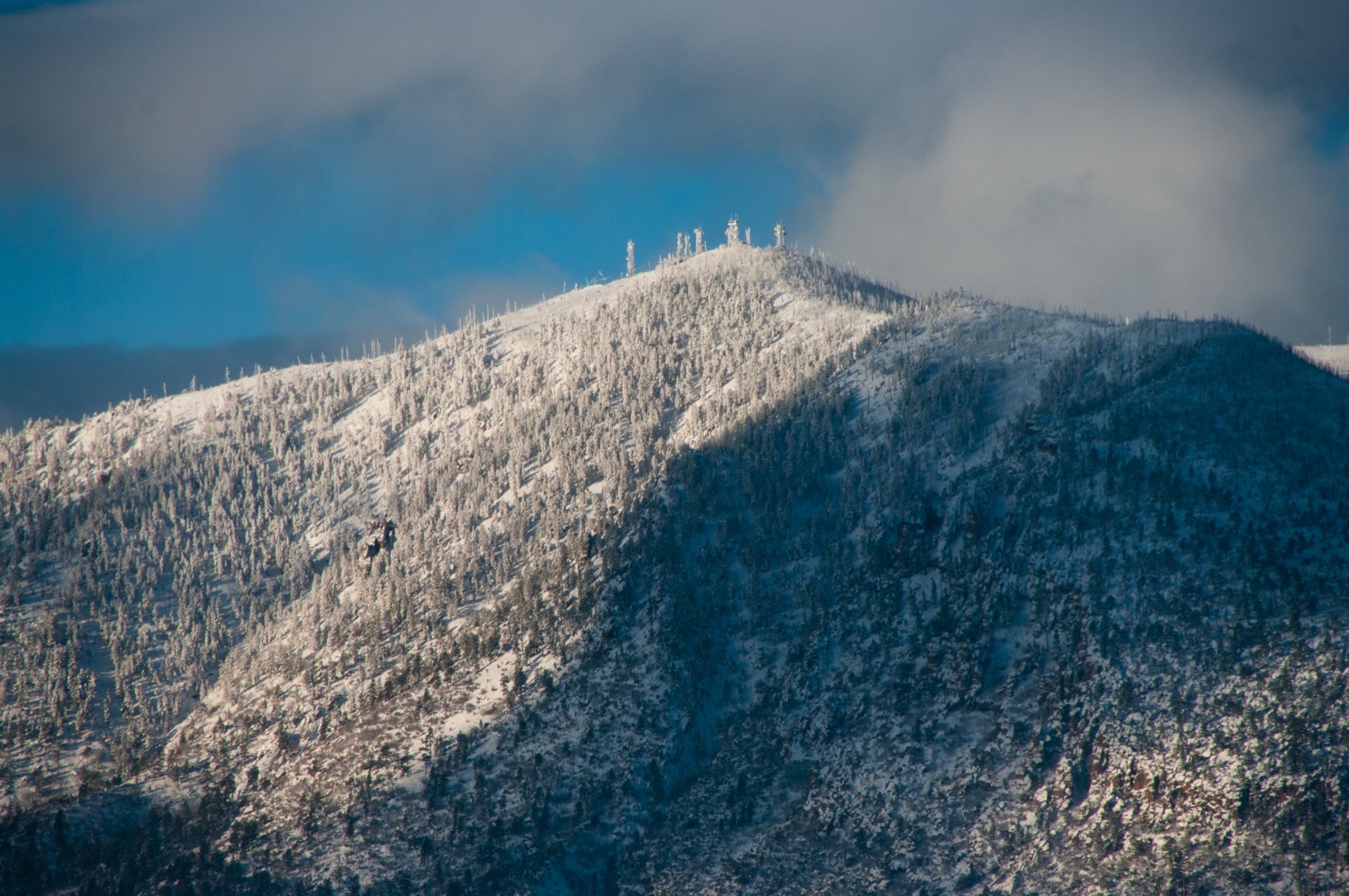

Communications towers on a snow-covered mountain summit
Deborah Lee Soltesz, public domain (CC0 1.0), via Wikimedia Commons.
Where the sensors go, top to base
Near the antenna mount
Maximum sway: the clearest signal for detecting motion and identifying mode 1
Mid-mast
Higher-mode antinode: separates the 2nd bending mode and torsion
Base / foundation weld
Maximum bending stress: anchors the fatigue estimate where cracks start

Which sensors handle vibration monitoring?

Wind-induced vibration is a fast, three-axis signal at a remote, frozen, off-grid site. The sensor has to capture all of it and phone home on its own power.

Omnidots SWARM triaxial vibration monitor
Omnidots SWARM, a triaxial vibration monitor. See it in the Market.
What a WIV sensor needs
Triaxial
Separates cross-wind sway, along-wind rocking, and torsion.
1 kHz capture
Fast enough to resolve the waveform, so vortex shedding is told apart from turbulence.
Cold and ice rated
Runs through the Arctic winter and survives icing on the housing.
Wireless backhaul
Cellular telemetry for sites with no fixed network.
Solar plus battery
Self-powered for sites with no grid, through the polar night.

What wind drives the vibration, and from which direction?

How often the wind blows from each direction, and which direction loads the tower's weak bending axis, together set the risk. The rose shows both the prevailing wind and the risk axis; the scatter shows how hard each event actually shakes the structure.

4%8%12%16%NESWNNESSWWind speed (mph)31+19-3112-197-120-7risk axis

Wind blows hardest from the E at Deadhorse, annual mean 11.9 mph. The tower's own geometry sets the danger: its weak bending axis runs roughly north-south (NNESSW, the red line), and wind arriving from either end of it drives the largest cross-wind sway. That is why the base weld is the focus area.

Amplitude by wind direction
05101520amplitude (mm)090180270360wind direction (°, 0 = N)

What happens if we install a tuned mass damper?

A wind forecast run through the model shows expected amplitude with and without a damper. Because fatigue scales with stress cubed, a modest cut in amplitude sharply slows the fatigue clock.

0481115predicted amplitude (mm)Day 1Day 2Day 3Day 4Day 5Day 6Day 7
as-is (bare) with tuned damper
Forecast peak, as-is
13 mm
Forecast peak, with damper
5 mm
Fatigue accrual cut
10×

The damper raises modal damping from 0.8% to 2.2% of critical, flattening the resonant peak and trimming the broadband response every day. Because fatigue scales with stress cubed, the accrual rate drops far more than the amplitude. Illustrative forecast.

tower swaytuned massmast
A tuned mass damper that fits

Socitec pendular TMD, tuned to the tower's first mode. A small suspended mass swings out of phase with the sway and bleeds the resonance away.

Tuning
1.5 Hz (matches mode 1)
Mass ratio
~1.5% of modal mass
Damping added
0.8% → 2.2% of critical
Mounting
Near the upper-mast antinode
Power / comms
None: fully passive
windhelical strakes
Or break up the shedding with strakes

Helical strakes are fins wound around the top of the shaft. They scramble the vortices so they no longer peel off in a clean, locked-in rhythm, killing the resonance at the source.

Coverage
Top ~⅓ of the shaft
Geometry
3-start helix, ~5D pitch, ~0.1D fin height
Cross-wind cut
Up to ~90% of VIV amplitude
Trade-off
Adds steady drag and a little ice-catch area
Tuning
None: works across wind speeds

Is the vibration vortex shedding, or turbulence?

Vortex shedding is a narrow oscillation across the wind at the natural frequency, so the cross-wind axis dominates one sharp spectral peak. Turbulence spreads energy across every axis and frequency.

Xcross-windYin-lineZaxial
Verdict: vortex-induced lock-in
Dominant frequency 1.5 Hz, the structure's 1st mode, so this is lock-in. The cross-wind axis carries 2.4× the energy of the in-line axis: a narrow, across-flow oscillation is the signature of vortex shedding. Random gust buffeting would spread energy evenly across both axes and the spectrum.
1,000 Hz · 3-axis · 4s window (4,000 samples/axis)Illustrative waveform.

Are the sensors healthy?

Remote Arctic monitoring is only as good as its uptime. Battery state, last-seen time, and link status sit on one panel, so a unit going dark in a freeze-up is caught before it leaves a gap in the fatigue record, not discovered at the next site visit.

Sensor fleet3/5 online
BX-01Antenna mount
Streaming 1 kHz, 3-axis · seen 2 min ago
batt91%
Online
BX-04Upper mast section
Streaming 1 kHz, 3-axis · seen 3 min ago
batt78%
Online
BX-07Mid-mast splice
Battery low: solar input down since freeze-up · seen 5 min ago
batt14%
Service soon
BX-09Lower flange splice
Streaming 1 kHz, 3-axis · seen 4 min ago
batt64%
Online
BX-12Base plate weld
No telemetry: likely comms or power fault · seen 9 days ago
batt0%
Offline

What are conditions at the site right now?

Monitoring an Arctic site means staring down the same weather the structure does: wind, light, and storms, in real time.

Live camera: Dalton Highway, Atigun Pass, Brooks Range

Live: Dalton Highway, Atigun Pass, Brooks Range (Alaska DOT&PF 511), similar to Montis camera systems.

Live wind over Prudhoe Bay (Windy).

Why is measuring vibration harder in the Arctic?

The wind never lets up

Deadhorse averages 11.9 mph from the E and has gusted to 109 mph. Cyclic loading is near-constant, so you have to capture events continuously, not sample them.5

No grid, thin comms

North Slope sites have no line power and little bandwidth. SSD instrumented more than 30,000 aboveground spans in exactly these conditions; historically the data came off by hand on infrequent visits.6

Cold and ice fight the instruments

Freeze-up cuts solar input and saps batteries, and ice loads both sensors and structure. Ice is implicated in most of the 140+ US tower failures CRREL has logged since 1959, itself only a partial count.3

The resonance target keeps moving

Ice accreting on the shaft adds mass and the deep cold stiffens the steel, so the tower's natural frequency drifts through the season.

So how do you know the tower is still safe?

More than four communication towers fall under wind and ice every year.3 A calendar inspection cannot tell you the natural frequency has drifted or a connection has loosened. Continuous monitoring can, and it can warn you before the next big event.

For most of that history, no standard even told anyone to look. Only in 2024 did TIA-222-I add vibration and fatigue, including vortex shedding.7 So the legacy towers most exposed to it were never analyzed for it in the first place. With the complexities of fluids like wind, monitoring is a wise way to go.

Live alerts

The base weld is vibrating harder than the model expected: measured 21 mm peak this week against a predicted 14 mm, and the gap is widening. Something has changed at the tower.

  • · Schedule a site visit to walk the structure.
  • · Stand up a camera on the mast to watch the sway directly.
  • · Size a tuned mass damper for the first mode (a Socitec pendular TMD fits).
  • · Re-inspect the base weld for crack initiation, and set a recheck interval.
Act now
Spec sheet

Take the engineering spec sheet with you

One page: what the monitoring system measures, the sensor and deployment specs, and the standards it aligns to. PDF.

Want this view on your structure?

Beadedcloud turns vibration and wind sensors into live amplitude, frequency-drift, and fatigue-cycle dashboards with alarms. Early access is open.

Sign up for Beadedcloud
